MDI 63 A / D 63mm Diameter Industrial Series

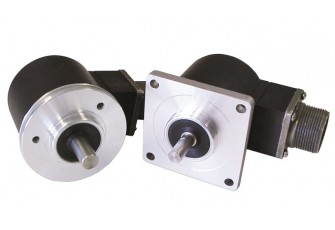

MDI63A/D series is available with either 9mm or 10mm solid shaft in a 63mm housing with a Type A or Type D flange. Models with and without ZERO PULSE are available together with models Push-Pull or Line Driver output logic. Standard mechanical protection is IP54 but models with IP66 protection are available equipped with special bearings.
MDI63A/D series is available with either a 1,5 m radial cable, longer cable models are available on demand,7-pole Amphenol MS3102-E-16-S (for Push-Pull models) or 10-pole Amphenol MS3102-E-18-1 (for Line Driver models) RADIAL or AXIAL MILITARY (MIL) Connector as well as either a M12 5 poles (for Push-Pull models) or 8-poles (for Line Driver models) RADIAL or AXIAL.
